!to "romread.prg",cbm
;--------------------------------------------------

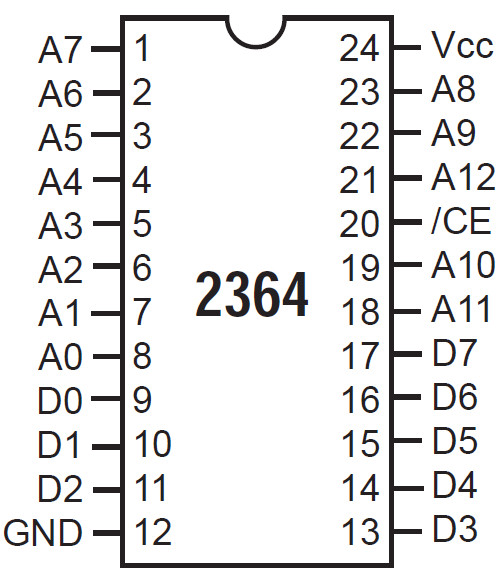

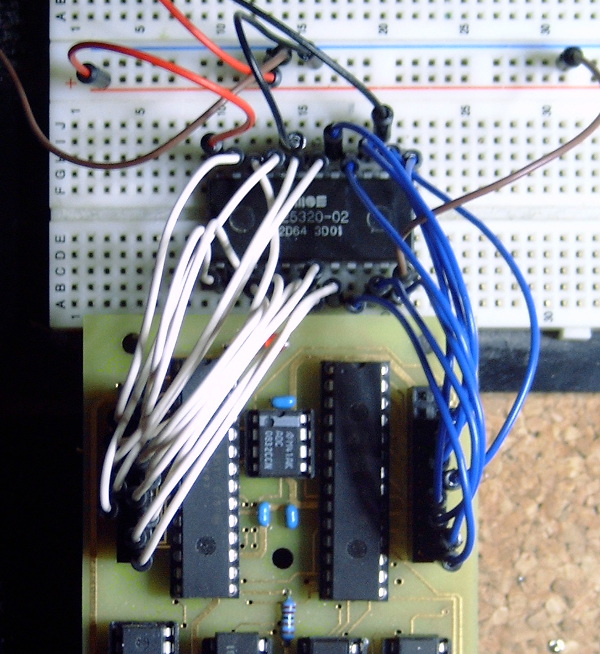

; 8Kbyte - 2364 ROM Read
;--------------------------------------------------
;
; Chip Address $01 : PortA = A0-A7
; PortB = A8-A12
; Chip Address $00 : PortA = D0-D7
;
; /CS - GND
;--------------------------------------------------
; Reads ROM in something around 0,5Kbyte/s
;
; 31.1.2016 M. Sachse http://www.cbmhardware.de
;--------------------------------------------------
ioport = $df01
t_lo = $0a
t_hi = $0b
outbuf = $0c
inbuf = $0d
x_temp = $0f
* = $1000
;--------------------------------------------------
; Setup Ports
;--------------------------------------------------
;
;---[ Write first Init to Expanders
;
lda #$93
jsr $ffd2
+ ldy #$00 ; init chip
sty count
sty lo_addr
lda #%00000000
sta ioport ; flip to low: chip selected
- lda port_init,y
sta outbuf
jsr send_byte ; send sequence to use address-pins
iny
cpy #$03 ; 3 bytes: $40 (+w),registers,value
bne -
lda #%00000001 ; flip to high: chip deselected
sta ioport
;---[ Set Direction-Register and Pullups Chip: A=0:PortA
;
lda #%00000000 ; set direction-register
sta ioport ; flip to low: chip selected
lda #$40
sta outbuf
jsr send_byte
lda #$00 ; 00h: IODIRA
sta outbuf
jsr send_byte
lda #$ff ; port input (D0-D7)
sta outbuf
jsr send_byte
lda #%00000001 ; flip to high: chip deselected
sta ioport
; Set Pullups
lda #%00000000
sta ioport ; flip to low: chip selected
lda #$40
sta outbuf
jsr send_byte
lda #$0c ; 0ch: GPPUA
sta outbuf
jsr send_byte
lda #$ff ; pullups on port set
sta outbuf
jsr send_byte
lda #%00000001 ; flip to high: chip deselected
sta ioport
;---[ Set Direction-Register Chip: A=1:PortA and PortB
;
lda #%00000000 ; set direction-register
sta ioport ; flip to low: chip selected
lda #$42
sta outbuf
jsr send_byte
lda #$00 ; 00h: IODIRA
sta outbuf
jsr send_byte
lda #$00 ; port output (A0-A7)
sta outbuf
jsr send_byte
lda #%00000001 ; flip to high: chip deselected
sta ioport
;PortB to output
lda #%00000000 ; set direction-register
sta ioport ; flip to low: chip selected
lda #$42
sta outbuf
jsr send_byte
lda #$01 ; 01h: IODIRB
sta outbuf
jsr send_byte
lda #$00 ; port output (A8-A12)
sta outbuf
jsr send_byte
lda #%00000001 ; flip to high: chip deselected
sta ioport
;--------------------------------------------------
;
; Address and read ROM
;
;--------------------------------------------------
sei
lda #"."
sta $0400
ldy #$00
lda #$30 ; storage at $3000-$4fff
sta t_hi
ldx #$00
stx t_lo
-- txa
sta lo_addr
sta x_temp
; set low address-bits
lda #%00000000 ; set address A0-A7
sta ioport ; flip to low: chip selected
lda #$42
sta outbuf
jsr send_byte
lda #$14 ; 14h:OLATA
sta outbuf
jsr send_byte
lda lo_addr
sta outbuf
jsr send_byte
lda #%00000001 ; flip to high: chip deselected
sta ioport
; get byte from port
lda #%00000000
sta ioport ; flip to low: chip selected
lda #$41
sta outbuf
jsr send_byte
lda #$12 ; 12h:GPIOA
sta outbuf
jsr send_byte
; read byte
ldx #$00
- lda #%00000010 ; set clock
sta ioport
lda ioport
and #%00001000
beq + ; write "0"
lda inbuf
ora or_table,x
sta inbuf
+ and #%00000000 ; clock low
sta ioport
inx
cpx #$08
bne -
lda #%00000001 ; flip to high: chip deselected
sta ioport
lda x_temp
tay
tax
lda inbuf

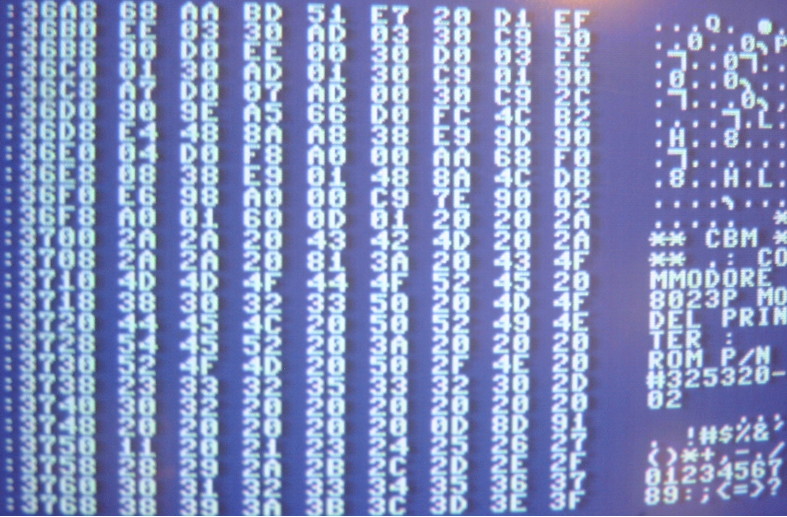

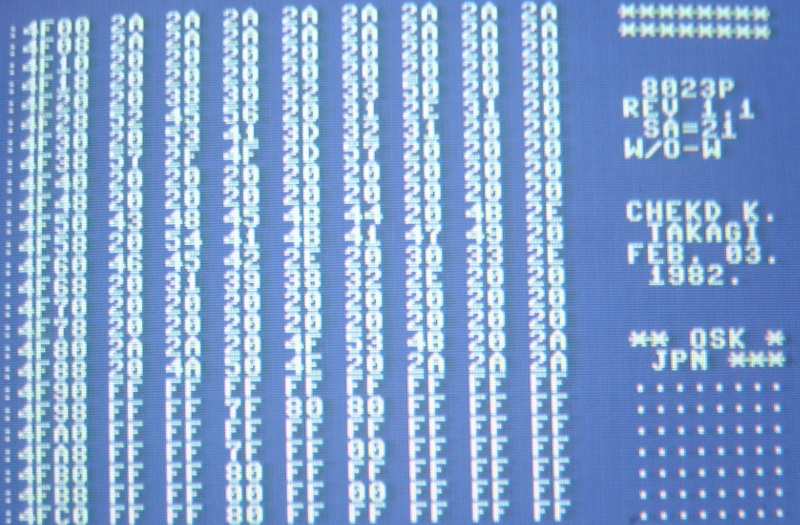

sta (t_lo),y ; save ROM at $3000-$4fff
and #$00
sta inbuf
inx
bne --
inc t_hi
inc count
; set high address-bits
lda #%00000000 ; set address A8-A12
sta ioport ; flip to low: chip selected
lda #$42
sta outbuf
jsr send_byte
lda #$15 ; 15h:OLATB
sta outbuf
jsr send_byte
lda count
sta outbuf
jsr send_byte
lda #%00000001 ; flip to high: chip deselected
sta ioport
ldy count
lda #"." ; drop some points ...
sta $0400,y
ldx #$00
cpy #$20 ; 32*256=8192 Bytes
beq ++
jmp --
++ cli
rts
count: !by $00
lo_addr: !by $00
;----------------------------
; send_byte
;
; x-reg: bit counter
; carry: bit carrier
;
;----------------------------
send_byte:
ldx #$00
txa
-- lda #$00
asl outbuf ; shift left: [Carry<-msb...lsb]
bcc +
; --- send high bit ---------
ora #%00000100 ; set bit
sta ioport
ora #%00000110 ; set clock
sta ioport
and #%00000100 ; set clock to low
sta ioport
clc
inx
cpx #$08
bne --
rts
; --- send low bit ----------
+ ora #%00000000 ; set bit
sta ioport
ora #%00000010 ; set clock
sta ioport
and #%00000000 ; clock to low
sta ioport
++ inx
cpx #$08
bne --
ldx #$00
rts
port_init: !by $40,$0a,$08
or_table: !by $80,$40,$20,$10,$08,$04,$02,$01
